Curved Bullet Resistant Vehicle Glass

    A quotation request form can be Found at the Bottom of the Page

    Curved Bullet Resistant Vehicle Glass

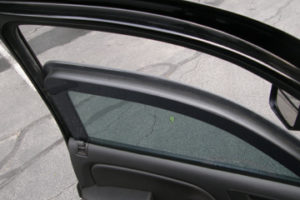

    armored-cars-5

    Curved Bullet Resistant Vehicle Glass is a glass-clad polycarbonate multi-ply composite laminate combing polycarbonate and glass using special polyurethane high adhesion bonding interlayers which allow the expansion / contraction differential of both materials. Our Protective Glass systems are directly interchangeable with OEM (Original Equipment Manufacturer) parts. Our Curved Bullet Resistant Glass meets standards set by: (ANSI) American National Standards Institute, (SAE) the Society of Automotive Engineers (DOT) Department of Transportation, and (ASTM) American Standard Testing Materials. Ballistic testing provided by: H.P.White Laboratories Inc.
    Our Curved Bullet Resistant  Vehicle Glass is only sold as a full  vehicle set. We do offer single replacement  units for existing armored vehicles.All of our Glass Systems are made in the USA.




    We have protection levels from .22 Handguns to Armor Piercing Assault Rifle rounds.
    Our most common level sold is AUTO-3 ( See chart below)

    For a price quotation, please fill out the ” Quotation Request Form” below, and we also require a phone call from you before we can provide you with a price quotation: 513-281-6700 M-F 9:AM to 5:PM: EST; USA



     Pricing and sales are limited to 2015 to 2024  year vehicles years only! Sorry No Exceptions .

    Frequently Asked Questions

    Bullet Resistant Glass for Vehicles: Glass -Clad Polycarbonate
    ProductThicknessWeightNIJ LevelCIN LevelStanagThreat
    Auto-214 MM
    9/16″    		25.2 Kg/m2
    5.3 Lbs. Sq. Ft.    		II BR-3.9mm,.357 Magnum Handguns and lesser threats.
    Auto-322 MM
    7/8″    		46.6 Kg/m2
    8.8 Lbs. Sq. Ft.    		IIIABR-49mm,.357,.44 Magnum Handguns and lesser threats.
    Auto-439 MM
    1-1/2″    		88 Kg/m2
    18 Lbs. Sq. Ft.    		IIIBR-6I5.56×45 [SS 109], 7.62×39 MSC, 7.62×51 FMJ and lesser threats.
    Auto-542 MM
    1-5/8″    		94 Kg/m2
    18.5 Lbs. Sq. Ft.    		IIIBR-6IMulti hit 7.62 x 51 FMJ and lesser threats.
    Auto-657 MM
    2-1/4″    		130 Kg/m2
    27 Lbs. Sq. Ft.    		IV.30-06 AP and lesser threats.
    Auto-778 MM
    3-3/16″    		180 Kg/m2
    34 Lbs. Sq. Ft.    		BR-77.62×51 AP and lesser threats.

    Installing a set of Curved Bullet Resistant Vehicle Glass is a start! You should also consider some type of Armor Panels for the doors and side wall. Or a complete Vehicle Armor Kit ( Handgun protection only)

    Please note: specifications and information listed on this page are subject to change without notice.

    Pricing and sales are limited to 2015 to 2024 year vehicles years only!
    Sorry No Exceptions.



    A few things to consider before requesting a price quotation:

    *Pricing starts at around $8,000 to $10,00.00 for small vehicles to over $14,000.00 and up for larger vehicles.
    *Modifications are needed to the vehicle doors for the installation.
    * Side door glass can be made to open from 4″-8″ Heavy Duty window lifts may be required to operate some of the heaver  glasss levels.

    *Is your vehicle a good fit to install Curved Bullet Resistant Vehicle Glass

    *Some vehicles are not well suited for the installation of our Curved Bullet Resistant Vehicle Glass, such as small compact cars: Like the Chevrolet Camaro, Corvette, Dodge Viper, Ford Mustang, Pontiac Trans-Am
, all Tesla Models, and any convertible top vehicle.

    *    Vehicles that are well suited for our Vehicle Glass are: Chevrolet Suburban, Toyota Landcruiser, Pick up trucks,
or other such heavy-duty 4 wheel drive vehicles.

    In addition to submitting the below Quotation Request!





    We also require a phone call from you before a price quotation will be provided.

    513-281-6700 M-F 9:AM To -5:PM: EST



    Ballistic Charts.

    Get a Quote


    Passenger CarSUVPick-Up TruckCargo VanPassenger VanOther


    2dr4dr

    Auto-2 Protection From: .9mm,.357 Magnum Handguns and lesser threats. Thickness: 4 mm / 9/16" Weight: 25.2 Kg/m2 (5.5 Lbs Sq. Ft.)

    Auto-3 Protection From: .9mm,.357, .44 Magnum Handguns and lesser threats. Thickness: 22 mm / 7/8" Weight: 46.6 Kg/m2 (8.8 Lbs Sq. Ft.)

    Auto-4 Protection From: 5.56 x 45 SS 109, 7.62 x 39 MSC, 7.62 x 51 FMJ and lesser threats. Thickness: 39 mm / 1-1/2" Weight: 88 Kg/m2 (18 Lbs Sq. Ft.)

    Auto-5 Protection From: Multi hit 7.62 x 51 FMJ and lesser threats. Thickness: 42 mm / 1-5/8" Weight: 94 Kg/m2 (18.5 Lbs Sq. Ft.)

    Auto-6 Protection From: .30-06 AP and lesser threats. Thickness: 57 mm / 2-1/4" Weight: 130 Kg/m2 (27 Lbs Sq. Ft.)

    Auto-7* Protection From: 7.62 x 51 AP lesser threats. Thickness: 78 mm / 3-3/16" Weight: 180 Kg/m2 (34 Lbs Sq. Ft.)

    Auto-7 is for protection from .30-06- Armor Piercing Rounds. In addition to submitting this Quotation Request. We also require a phone call with our staff: 513-281-6700

    MH: Multi-Hit Situation
    AP: Armor Piercing Round
